Zamak alloys used commonly in die casting have attractive characteristics which include versatility, strength, and durability. Of all the Zinc die-casting alloys, Zamak3 and Zamak5 are the most prevalent due to their special characteristics and the versatility of the application areas. To avoid compromising its functions, it is important for manufacturers and engineers who make choices to learn and distinguish the various qualities of those alloys. This guide discusses all the differences and similarities between Zamak 3 and Zamak 5 as well as their use in multiple settings and their capabilities.

What is Zamak?

Zamak, a term that is an acronym for Zinc, Aluminum, Magnesium, and Kupfer, (original German for copper), denotes a group of zinc-based alloys widely used for die casting. Some of the properties that make these alloys desirable is; polished appearance, precise dimension, and high corrosion resistance.

The Zamak type of alloy varies depending on the proportion of aluminum, magnesium, and copper it contains. The two common forms are Zamak 3 and Zamak 5, which have Different settings of parameters for different industries.

Chemical Composition of Zamak 3 and Zamak 5

This is because the performance of Zamak 3 and Zamak 5 depends on the chemical composition. These two alloys contain major proportions of zinc but they differ in secondary elements which result in different properties.

Key Differences

• Zamak 3 lacks copper, giving it slightly better corrosion resistance in specific environments.
• Zamak 5 contains about 0.75% copper, enhancing its strength and hardness.

3. Mechanical Properties Comparison

It is for this reason that Zamak 3 and Zamak 5 have some variations of the mechanical properties, which are a result of the differences in their formulation. This affects their usage as well as working efficiency under different circumstances.

Table: Mechanical Properties of Zamak 3 vs. Zamak 5

Analysis

• Strength: Zamak 5 has higher tensile and yield strength, making it more robust for demanding applications.
• Ductility: Zamak 3 exhibits better elongation and impact resistance, suitable for parts requiring flexibility.
• Hardness: Zamak 5’s higher hardness ensures better wear resistance.

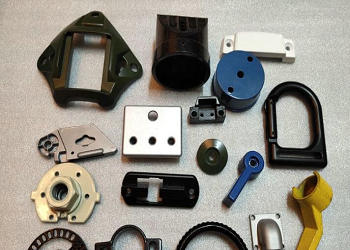

4. Applications of Zamak 3 and Zamak 5 die casting products
   Namely, the properties of Zamak 3 and Zamak 5 make them suitable for particular uses.

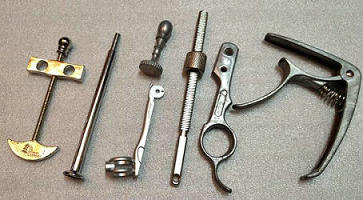

   Zamak 3 casting Applications

1. Consumer Goods: Commonly seen on die-cast end products such as car door handles, zippers, and other small ornamental parts.
2. Electronics: Zamak 3 die casting parts can also maintain a more stable dimension than other die-cast alloys, especially for housing or enclosure applications.
3. Toys: Otherwise known for its good surface finish and easy-to-machine material, many die cast toys made with zamak 3 die casting process

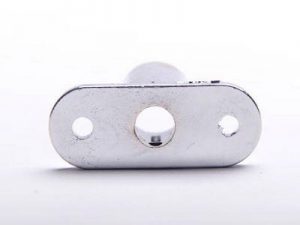

Zamak 5 die casting Applications

1. Automotive Industry: Owing to high strength, Zamak 5 alloy die casting parts are used in the structural and functional parts of a variety of apparatus.
2. Hardware: Writing instrument parts – zinc die casting hinges, brackets, locks, benefit from its increased hardness.
3. Industrial Equipment: Zamak 5 die casting parts are the choice for all the zinc alloy parts experiencing high stresses.

Table: Applications by Industry

Advantages and Limitations

Advantages of Zamak 3 die casting products

• Cost-Effective: Lower material cost compared to Zamak 5 alloys.
• Corrosion Resistance: Excellent in environments where copper would accelerate corrosion.
• Ease of Casting: Offers better fluidity during zinc die casting manufacturing process.

Advantages of Zamak 5 die casting products

• Strength and Hardness: Higher mechanical strength and wear resistance.
• Durability: Better suited for high-stress applications.
• Surface Treatment: Enhanced suitability for plating and finishing.

Limitations

Zamak 3:

     Maintenance of limited power when required to operate under high stress conditions.

Zamak 5:
This is another reason for a slightly lower corrosion resistance at higher concentrations of                                        copper present in the alloy.

Die Casting Zamak 3 vs. Die Casting Zamak 5

Die casting is a process of forcing a metal at high pressure into a mold cavity. Both die-casting Zamak 3 and die-casting Zamak 5 excel in producing intricate shapes with tight tolerances, but there are notable differences:

Die Casting Process Overview

 Key Considerations:

• Ease of Use: Zamak 3 die casting also has drawing advantages over the other because of its comparatively lower casting temperature and better fluidity.
• Stress Tolerance: Therefore, Zamak 5 die casting can be used in an application with robust parts and components.

7. Choosing the Right Alloy

Factors to Consider

Application Requirements:

• For applications that need high dimensional stability, corrosion resistance, and low-stress bearing: the Zamak 3 alloy material should be used.
• When selecting for strength and hardness choose Zamak 5 alloy for parts that require high levels of durability, and lower stress tolerance.

Cost:

• It is observed that Zamak 3 alloy is slightly cheaper than Zamak 5 alloy.

Environment:

• Zamak 3 may do better in corrosive circumstances because of a lack of copper in the alloy.

Decision Table: Zamak 3 vs. Zamak 5

Practical Use Cases for Zamak 3 and Zamak 5

Thus, we will investigate how adopted scenarios of Zamak 3 and Zamak 5 work in practice. This will also make clear to them the benefits and the nature of their applicability to certain functions.

Zamak 3 in Practice

• Electronics Industry: Zamak 3 die casting is used predominantly for applications in which the materials
  requirements are moderately high where it is applicable for die casting of electronic housing and connectors. The material has very low coefficients of thermal expansion and high stability of dimensions, which allows for maintaining tight tolerances necessary for components with critical fits and alignment.
• Consumer Products: Compared to Zamak 2, Zamak 3 alloy offers improved surface finishes, an element that makes it ideal to use in decorative products; jewelry; frames; and small tools.
• Prototyping: Overall, the proposed trial alloy can often be cast and machined in a relatively short period of time, which makes it appropriate for use in prototype mounting.

Zamak 5 in Practice

• Automotive Sector: Therefore, Zamak 5 is widely used for structural pieces such as brackets, gear housing, or motor components as it provides a higher strength and hardness.
• Construction Hardware: Its durability and wear resistance make Zamak 5 suitable for hinges, locks, and architectural fixtures.
• Industrial Equipment: Zamak 5 alloy excels in creating robust parts for machinery, offering longevity under stress and wear conditions.

Case Study: Die Casting Zamak 3 vs. Die Casting Zamak 5 in Automotive Applications

Scenario

An automotive manufacturer needs die-casting parts for interior fixtures and support brackets.

1.     Interior Fittings:

• Material: Zamak 3.
• Reason: Fittings have to provide better dimensional control, appearance and resistance to corrosion. Such properties are perfectly suitable in Zamak 3 and this is why it fits the requirements perfectly.
• Outcome: Economical manufacturing accompanied by appropriately crafted and glossy parts.

2.     Structural Brackets:

• Material: Zamak 5.
• Reason: Mechanical stresses seen in brackets necessitate higher material tensile strength and hardness. It is the kind of durability that Zamak 5 brings to the table.
• Outcome: Durable components that withstand prolonged use without deformation.

Emerging Trends in Zamak Alloy Applications

With advancements in manufacturing technologies and material science, Zamak 3 alloy and Zamak 5 alloy are finding innovative applications:

1.     Additive Manufacturing Integration:

• Combining die-cast Zamak components with 3D-printed parts for hybrid solutions.
• Zamak alloys’ dimensional precision complements additive manufacturing’s customizability.

2.     Green Manufacturing:

• Sheet metal recycling of Zamak alloys is on the rise because it cuts on the aspect of wastage as well as the practice affects the natural environment.
• Both Zamak 3 and Zamak 5 are 100% Recyclable materials Used for casting: Sustainable. Impact.
• Both Zamak 3 and Zamak 5 are fully recyclable, aligning with sustainability goals.

3.     Miniature Parts Production:

• Both alloys are expected to find increasing applications in micro die casting for manufacturers of tiny parts for electronic devices and medical equipment.

Advanced Surface Finishing for Zamak 3 and Zamak 5

The application of a suitable surface finish is important in improving the appearance, anti-corrosion properties, and general performance of die-cast parts. The two materials Zamak 3 and Zamak 5 can be easily polished through the use of different finishing processes.

Popular Finishing Methods

1. Electroplating:


• Provides a durable, decorative finish.
• Zamak 5’s higher copper content results in better adhesion during plating.

2. Powder Coating:

• Offers robust corrosion resistance and color customization.
• Common for consumer products and outdoor components.

3. Polishing and Buffing:

• Primarily applied on Zamak 3 to produce a polished, mirror-like finish.

Comparison of Finishing Compatibility

Infographic Summarizing Zamak 3 vs. Zamak 5

Zamak 3:

• Superior dimensional stability.
• Cost-efficient and corrosion-resistant.
• Ideal for consumer products and electronics.

Zamak 5:

• Enhanced strength and hardness.
• Suitable for structural and wear-resistant components.
• Preferred for automotive and industrial applications.

Key Insights and Recommendations

When to Choose Zamak 3:

• opt for Zamak 3 when cost is a priority, and the application requires excellent fluidity and corrosion resistance without high-stress demands.
• Ideal for consumer goods, electronics, and prototypes.

When to Choose Zamak 5:

• Select Zamak 5 for applications that demand higher mechanical strength and wear resistance.
• Best suited for automotive components, industrial machinery, and hardware subjected to stress.

Comparing the Long-Term Performance of Zamak 3 and Zamak 5

There is, therefore, a need to consider the long-term performance difference that exists between Zamak 3 and Zamak 5. These two alloys have dissimilar Serviceability characteristics such as their durability levels across environmental and operational conditions, stress, temperature, and corrosive environments.

Corrosion Resistance

• Zamak 3:
• Superior corrosion resistance due to the absence of copper.
• Performs exceptionally well in humid and mildly corrosive environments.
• Ideal for applications where the component will be exposed to moisture or damp conditions.

Zamak 5:

• Copper content enhances strength but slightly reduces corrosion resistance.
• Additional surface treatments like plating or coating are often necessary to improve its resilience in highly corrosive environments.

Stress and Fatigue Resistance

• Zamak 3:
• Its higher elongation percentage allows it to withstand minor deformations without cracking, making it suitable for low-stress, high-durability applications.

Zamak 5:

• Designed for higher-stress environments due to its superior tensile strength and hardness. It is less prone to wear or deformation under consistent mechanical loads.

Temperature Performance

While both alloys perform well at standard operating temperatures, neither is suitable for extremely high-temperature applications, as zinc-based alloys have relatively low melting points (~380–400°C).

Maintenance and Longevity: Practical Considerations

Maintenance Requirements

Zamak 3: Minimal maintenance due to its excellent corrosion resistance. Components made from Zamak 3 often require little to no additional treatment in standard environments.

Zamak 5: May require regular inspection and additional coatings in environments where corrosion or high wear is expected.

Longevity in Various Industries

Electronics and Consumer Goods (Zamak 3):

• Longevity depends on proper use and minimal physical stress.
• Excellent for items intended for indoor or controlled environments.

Automotive and Industrial Applications (Zamak 5):

• Exceptional lifespan when used in high-strength and wear-resistant scenarios.
• Requires proper surface protection for outdoor or corrosive applications.

Environmental and Sustainability Aspects

Recycling and Reusability

Both Zamak 3 and Zamak 5 are 100% recyclable, aligning with modern sustainability goals in manufacturing. Recycled Zamak retains nearly all of its original properties, making it a highly sustainable material for industries focused on reducing their environmental footprint.

• Zamak 3: Easier to recycle due to the absence of copper, simplifying the separation and purification processes.
• Zamak 5: Although slightly more complex to recycle because of its copper content, it is still a viable and eco-friendly option.

Environmental Impact

Zamak alloys contribute to eco-friendly manufacturing due to:

• Lower energy consumption in the casting process compared to other metals like aluminum or steel.
• Reduced wastage, as die-casting processes, produce components with minimal material loss.

Visual Comparison Chart: Zamak 3 vs. Zamak 5

Advancements in Die Casting Technology for Zamak 3 and Zamak 5

The evolution of die-casting processes has significantly improved the efficiency and quality of components made from Zamak 3 and Zamak 5. Advanced techniques now enable manufacturers to achieve even tighter tolerances, intricate geometries, and smoother finishes, benefiting a range of industries.

Key Technological Improvements

1.       High-Pressure Die Casting (HPDC):

• Allows for rapid production cycles with excellent repeatability.
• Both Zamak 3 and Zamak 5 perform exceptionally well in HPDC due to their low melting points and fluidity.

2.     Vacuum-Assisted Die Casting:

• Reduces porosity, which is critical for ensuring the strength and reliability of Zamak 5 components in high-stress applications.
• Improves surface finish for both Zamak alloys, enhancing their suitability for decorative and functional purposes.

3.     Thin-Wall Casting:

• Enables the production of lightweight yet strong components, particularly useful for Zamak 5 in automotive applications.

4.     Automated Systems:

• Integration of robotics and AI for precise injection and cooling cycles has minimized human error, enhancing the consistency of components made from Zamak 3 and Zamak 5.

Market Trends: Growing Demand for Zamak 3 and Zamak 5

The demand for Zamak 3 alloy and Zamak 5 alloy is on the rise due to their versatility and adaptability across industries. Below are some emerging trends driving this demand:

1.Increased Use of Electric Vehicles (EVs):

• Zamak 5 is being utilized in EV components due to its lightweight yet strong properties, contributing to energy efficiency.
• EV manufacturers favor Zamak 3 for interior components where precision and aesthetics are vital.

2.Expansion in the Medical Device Industry:

• The biocompatibility and dimensional stability of Zamak 3 make it suitable for non-implantable medical devices.
• Zamak 5 is used for durable, wear-resistant tools and equipment.

3.Adoption in Consumer Electronics:

• With the miniaturization of devices, both Zamak alloys are gaining traction for their ability to create intricate, high-strength parts for smartphones, laptops, and wearable tech.

Challenges and Solutions in Using Zamak Alloys

Challenges

Corrosion Concerns with Zamak 5:

The presence of copper can lead to galvanic corrosion when in contact with other metals.

Low Heat Resistance:

Both Zamak alloys are unsuitable for high-temperature applications due to their melting points.

Surface Imperfections:

Porosity during casting can affect the final appearance and structural integrity.

Solutions

Advanced Coatings:
Techniques such as chrome plating or anodizing can mitigate corrosion and improve heat resistance.

Optimized Casting Techniques:

Vacuum die casting reduces porosity, ensuring higher-quality parts.

Material Combinations:

Using Zamak 5 for structural parts and Zamak 3 for low-stress, decorative components optimize performance and cost.

A Look into the Future of Zamak Alloys

The future of Zamak 3 and Zamak 5 lies in their continued adaptation to emerging technologies and industries. With ongoing advancements, these alloys are poised to remain essential materials in modern manufacturing.

Future Prospects

1.     Enhanced Alloy Formulations:

Research is underway to improve corrosion resistance and thermal stability without compromising strength.

2.     Integration with Smart Manufacturing:

Digital twins and IoT-enabled monitoring systems will enhance the precision and efficiency of die-casting processes.

3.     Expanded Recycling Initiatives:

The circular economy will drive efforts to recycle Zamak alloys, reducing costs and environmental impact.

4.     Wider Applications in Aerospace:

Lightweight Zamak alloys, especially Zamak 5, are being explored for use in non-critical aerospace components.

Conclusion

Therefore, it is possible to highlight that the choice between Zamak 3 and Zamak 5 depends only on some features of the given project. About that, Zamak 3 has excellent corrosion resistance, low cost, and good casting characteristics and is therefore used in consumer products, electronics, and ornamental parts. On the other hand, Zamak 5 brings about better strength, hardness, and wear resistance, and therefore it is widely used in the automobile, industries, and in hardware industries.

By appreciating the functionalities of these alloys and how they are suited in functional, aesthetic, and economic ways, one can ensure the right usage, dimension, and durability of components. Both of these alloys retain their usefulness in today’s manufacturing environment thanks to their extreme adaptability.
